MetroLinq™ 2.5G 60 PTP

MetroLinq™ 2.5G 60 PTP

MetroLinq 2.5G 60 series point-to-point devices support an extreme capacity of 2.5 Gbps. Its new generation RF powered by a quad core CPU supports higher modulation allowing delivery of more than two times higher capacity (up to 4.6 Gbps OTA rate) compared to the first generation platform.

How To Buy

Multi-gigabit capacity

Resset icon

Reset Button

ETH port icon

SFP port

SFP port icon

USB 3.0

USB icon

2.5G ETH port with PoE IN(24-48V)

Screw terminal

Screw terminal (DC power in 24-48V)

MetroLinq 2.5G series devices have interfaces allowing to utilize the full capacity of the link including a 2.5Gbps
NbaseT copper interfacesupporting PoE and SFP port.

Multiple client options

Two model options with different sized integrated antennas are available tosupport different distances. Even though the average recommendeddistance for the 35 cm antenna is 1.6 km (1 mi) there are customers running their links at 70-80% of the maximum capacity at 2.5 km (1.6 mi), which is possibly a record distance in the 60GHz unlicensed band.

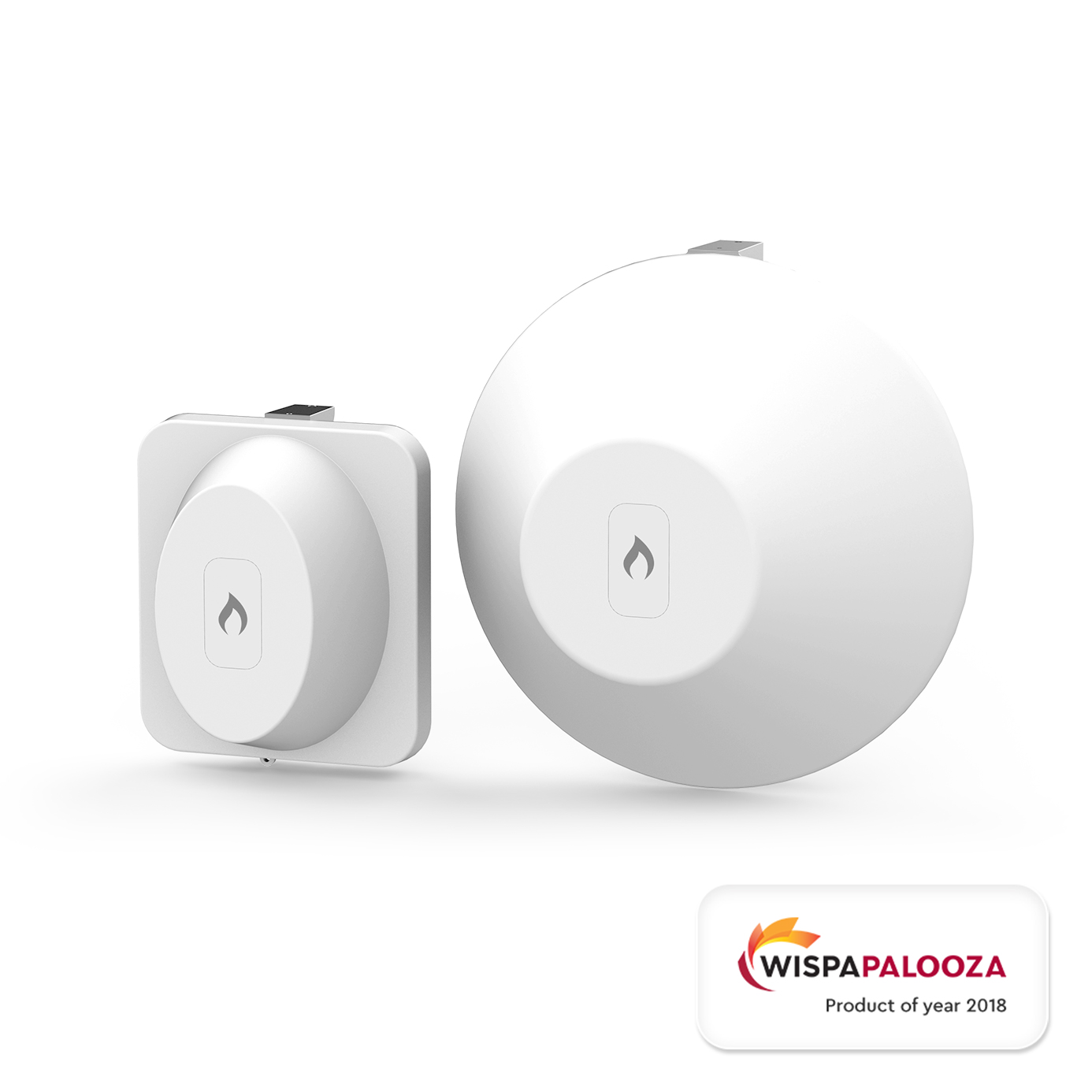

MetroLinq PTP 19 cm
MetroLinq PTP 19 cm
1 km ( 0.62 mi )
MetroLinq PTP 35 cm
MetroLinq PTP 35 cm
1.6 km ( 1 mi )

Powerful OS

The advanced operating system has a professional feature-set required to do point-to-point communication, which includes 128 bit AES encryption for security, Jumbo frame support, 5 GHz failover radio and many more. Each link can be configured individually and also using our cloud based controller.

Device interface

Accessories simplifying setup

Mounting bracket

Mounting bracket options

Two different mounting brackets are available to choose from for links in different distances and weather conditions.

MetroLinq™ Alignment Scope

Utilizing leading-edge technology, IgniteNet’s MetroLinq™ Alignment Scope delivers unprecedented performance and ensures precise antenna positioning in the field, bringing accuracy during deployments, installations, and ongoing operations. Initial antenna position is critical during Metrolinq™ antenna upgrades or new deployments for post installation network performance. The Metrolinq™ Alignment Scope saves time and money by eliminating costly site re-visits and re-climbs.

MetroLinq Linq Assist

The innovative Linq Assist application and alignment scope are very handy when setting up the link. An optional, external USB dongle with Bluetooth support allows connecting to the device directly with your mobile device, which simplifies the on-site fine tuning.

Downloads

download icon MetroLinq 2.5G Datasheet
